2BVA5121 Liquid Ring Vacuum Pump
For distillation, drying or filtration equipment, provide gas composition, vapour and particle load, duty cycle, vessel volume and evacuation target. Confirm casing and impeller materials, seal compatibility, flange dimensions, cooling, liquid separation, recirculation or discharge treatment, and protective controls. Pharmaceutical processes require application-specific validation with the equipment integrator. Verify continuous-duty capability, noise measurement conditions and maintenance requirements for the quoted configuration.

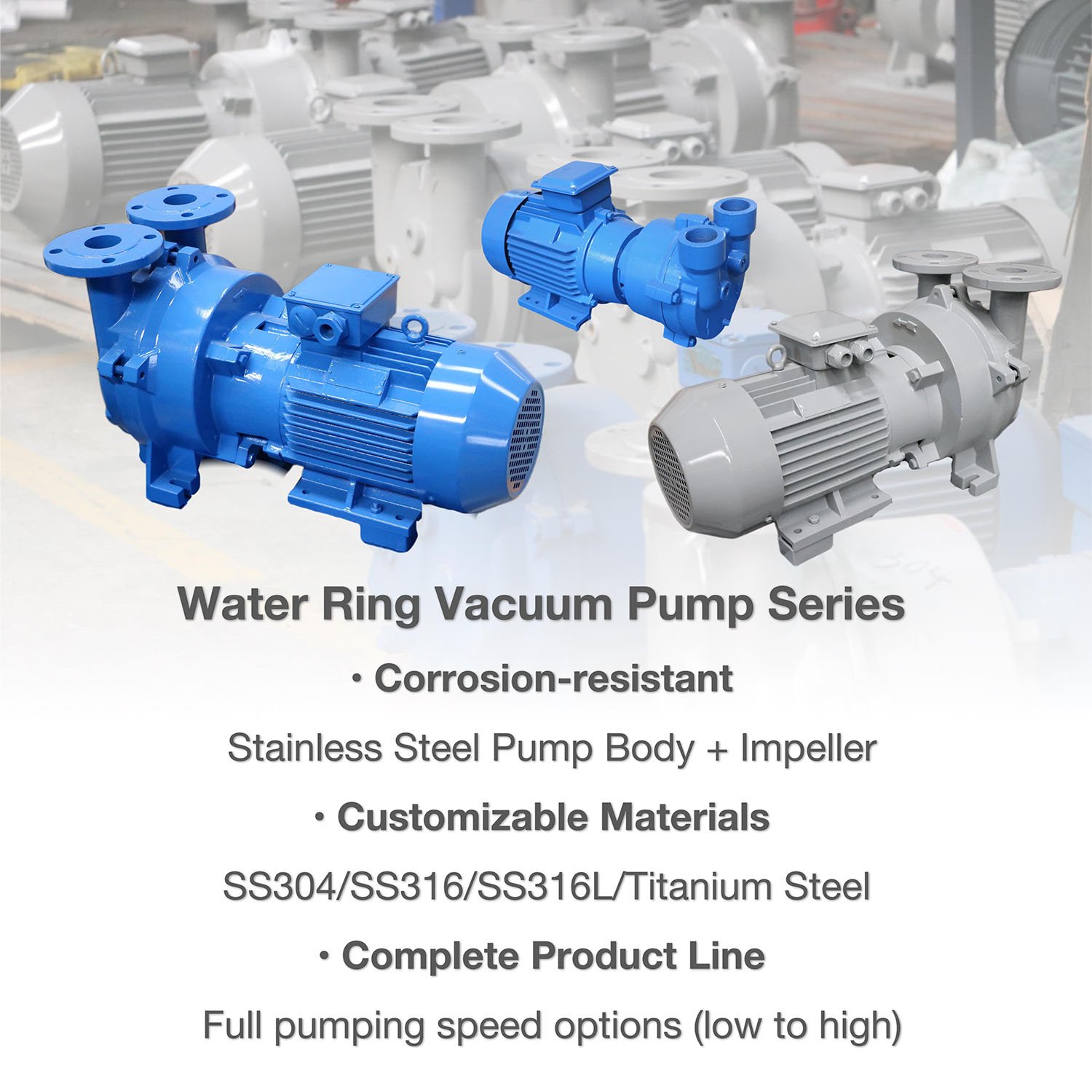

Image Gallery
2BVA Series Liquid Ring Vacuum Pump Technical Specifications
| Model / Parameter | 2BVA2060 (2BV2 060) | 2BVA2061 (2BV2 061) | 2BVA2070 (2BV2 070) | 2BVA2071 (2BV2 071) | 2BVA5110 (2BV5 110) | 2BVA5111 (2BV5 111) | 2BVA5121 (2BV5 121) | 2BV5 131 | 2BV5 161 |
|---|---|---|---|---|---|---|---|---|---|
| Max Air Capacity (m³/min) | 0.45 | 0.86 | 1.33 | 1.83 | 2.75 | 3.83 | 4.66 | 6.66 | 8.33 |
| Ultimate Vacuum (-MPa / mbar) | 0.097 (33 mbar) | 0.097 (33 mbar) | 0.097 (33 mbar) | 0.097 (33 mbar) | 0.097 (33 mbar) | 0.097 (33 mbar) | 0.097 (33 mbar) | 0.097 (33 mbar) | 0.097 (33 mbar) |
| Motor Power (kW) | 0.81 | 1.45 | 2.35 | 3.85 | 4.0 | 5.5 | 7.5 | 11.0 | 15.0 |
| Pump Speed (r.p.m) | 2880 | 2880 | 2850 | 2860 | 1450 | 1450 | 1450 | 1430 | 970 |
| Operating Liquid Flow (L/min) | 2.0 | 2.0 | 2.5 | 4.2 | 6.7 | 8.3 | 10.0 | 15.0 | 20.0 |
| Port Diameter / Inlet Connection | DN25 Thread | DN32 Thread | DN40 Thread | DN40 Thread/Flange | DN50 Flange | DN50 Flange | DN65 Flange | DN80 Flange | DN100 Flange |
| Noise Level dB(A) | ≤ 62 | ≤ 65 | ≤ 66 | ≤ 72 | ≤ 63 | ≤ 68 | ≤ 69 | 73 | 74 |
| Net Weight (kg) | 34 | 35 | 50 | 60 | 90 | 110 | 150 | 180 | 300 |
Key Technical Features & Performance Advantages
Listed Displacement: 4.66 m³/min
The page lists 4.66 m³/min (279.6 m³/h) displacement and 7.5 kW motor power. Confirm the pumping-speed curve at the required inlet pressure, gas load and service-liquid conditions before selection.
Listed DN65 Connections
The page lists DN65 inlet and outlet connections. Confirm flange standards, dimensions, gasket selection and piping loads against the supplied drawing, and verify joint sealing during installation.
Material Options Require Confirmation
Confirm casing, impeller and seal materials for the ordered configuration. Any SS304, SS316 or SS316L option requires compatibility review for the gas, condensate, temperature and service liquid.
Listed Service-Liquid Flow: 10 L/min
The listed service-liquid flow is 10 L/min. Confirm the required flow, temperature and supply monitoring for the duty; the listed 33 mbar absolute limit is not a guaranteed pressure under process load, and dry running must be prevented.
Target Applications & Industry Uses
🧪 Chemical & Pharmaceutical Systems
For solvent recovery, distillation or tray drying, calculate gas and vapor loads at the required pressure. Confirm wetted materials, service-liquid compatibility, condensate handling and any pharmaceutical or hazardous-area requirements for the complete system.
🌊 Wastewater & Environmental Engineering
For vacuum-assisted sludge dewatering or suction priming, size the pump for air leakage, evacuation time and operating pressure. Confirm upstream separation, liquid carryover limits, service-liquid treatment and discharge handling for the specific installation.
🪵 Pulp, Paper & Textile Processing
For felt dewatering, timber impregnation or textile drying, assess moisture carryover, gas load and required pressure for the process equipment. Confirm separation, service-liquid management and compatibility with process chemicals.
⚙️ Plastic Extrusion & CNC Clamping
For extrusion degassing, match pumping speed to gas release and required process pressure. For CNC clamping, separately verify pressure differential, effective holding area and leakage; both duties require suitable filtration and liquid carryover control.
Frequently Asked Questions (FAQ)
What are the core performance specifications of the 2BVA5121 vacuum pump?
The page lists 4.66 m³/min (279.6 m³/h) displacement, 7.5 kW motor power, 1450 r/min speed, DN65 connections and 10 L/min service-liquid flow. Confirm the selected configuration and performance curve; the listed 33 mbar absolute limit is not a guaranteed pressure under process load. Any noise specification requires its test conditions.
How does the 2BVA5121 differ from the 2BVA5111 model?
The pages list 4.66 m³/min displacement, 7.5 kW motor power and DN65 connections for 2BVA5121, compared with 3.83 m³/min, 5.5 kW and DN50 for 2BVA5111. Compare performance curves under the same operating conditions, installation dimensions and actual gas load before selecting a model.
What corrosion-resistant material options are available for the 2BVA5121?
Confirm which casing, impeller, seal and other wetted-material options are available for the ordered configuration. Any SS304, SS316 or SS316L option requires compatibility review for the chemicals, concentration, temperature, condensate and service liquid; the material name alone does not establish suitability.
What is the recommended operating liquid flow rate for the 2BVA5121?
The listed service-liquid flow is 10 L/min. Confirm required flow, inlet temperature, liquid quality and once-through or recirculation arrangement for the operating pressure and gas load, including cooling and supply monitoring for continuous duty.
Ready to Upgrade Your Industrial Vacuum System?
Send the model, target pressure, gas load, seal-liquid type and temperature, electrical supply and operating schedule for a configuration and quotation review. Request drawings and confirm availability and lead time for the proposed configuration.
