| Specification Item | Technical Parameter |
|---|---|
| Nominal Pumping Speed | 63 m³/h |
| Ultimate Pressure (Vacuum) | 0.1 – 0.5 mbar |
| Motor Power Rating | 2.2 kW |
| Rated Voltage Options | 380V (3-Phase) / 220V (1-Phase) |
| Nominal Motor Speed | 1440 rpm |
| Inlet Port Size | G 1 1/4" Threaded Port |
| Operational Noise Level | ≤ 65 dB(A) |
| Water Vapor Tolerance / Max Extraction | 40 mbar / 1.0 kg/h |
| Oil Capacity | 2.5 L |
| Net Weight | 70 kg |
| Dimensions (L × W × H) | 665 × 410 × 295 mm |
| Model | Flow (m³/h) | Vacuum (mbar) | Power (kW) | Speed (rpm) | Noise (dB) | Inlet | Oil (L) | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|---|---|---|---|---|
| V-020 | 20 | 0.1–0.5 | 0.75 | 2880 | ≤ 62 | G 1/2" | 0.5 | 20 | 410×235×195 |
| V-025 | 25 | 0.1–0.5 | 0.75 | 1440 | ≤ 62 | G 3/4" | 0.5 | 25 | 465×230×205 |
| V-040 | 40 | 0.1–0.5 | 1.5 | 1440 | ≤ 65 | G 1 1/4" | 1.5 | 45 | 660×290×260 |
| V-063 | 63 | 0.1–0.5 | 2.2 | 1440 | ≤ 65 | G 1 1/4" | 2.5 | 70 | 665×410×295 |
| V-100 | 100 | 0.1–0.5 | 3.0 | 1440 | ≤ 67 | G 1 1/4" | 2.5 | 85 | 715×410×295 |
| V-202 | 200 | 0.1–0.5 | 4.5 | 1440 | ≤ 72 | G 2" | 5.0 | 150 | 850×490×430 |
| V-250 | 250 | 0.1–0.5 | 5.5 | 1440 | ≤ 73 | G 2" | 7.5 | 195 | 980×560×430 |
| V-302 | 300 | 0.1–0.5 | 7.5 | 1440 | ≤ 75 | G 2" | 7.5 | 211 | 1000×535×430 |
| V-630 | 630 | 0.1–0.5 | 18.5 | 960 | ≤ 80 | G 3" | 25.0 | 650 | -- |

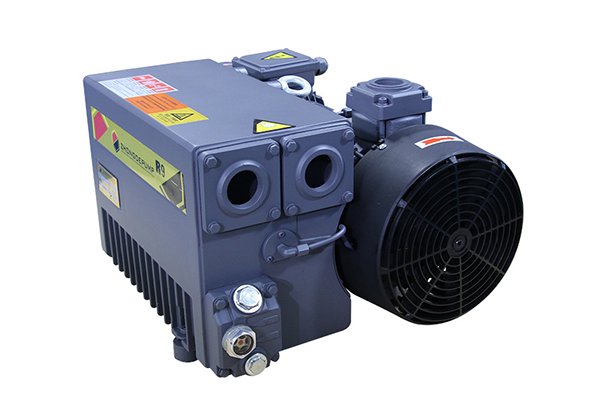

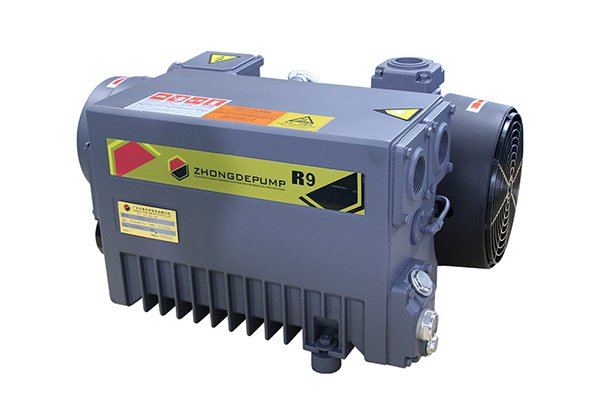

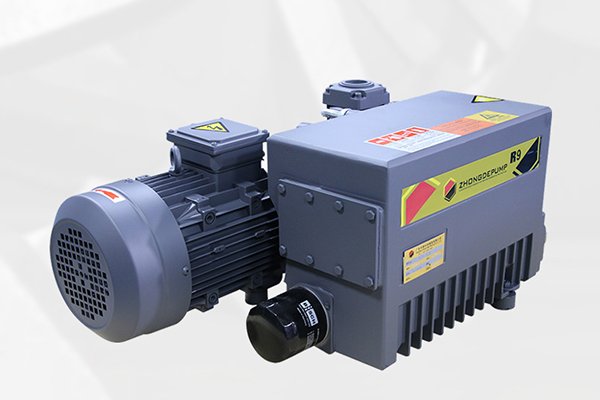

Standard motor direct-driven system with a 2.2 kW motor, delivering high torque and stable 63 m³/h flow for automated machinery.
Integrated advanced oil mist separator captures micro oil droplets, ensuring clean exhaust output and lower operational costs.
Precision dynamic balancing design keeps noise levels below ≤65 dB(A), requiring no extra vibration damping mounts.
Features standard G 1 1/4" threaded ports and a robust air-cooled structure, allowing simple drop-in replacement for industrial equipment.
The main difference lies in pumping speed and motor power. The V063 delivers 63 m³/h displacement with a 2.2 kW motor, whereas the V040 provides 40 m³/h with a 1.5 kW motor. The V063 is engineered for larger vacuum chambers and faster cycle times.
Yes, all V063 pumps come standard with a high-efficiency exhaust oil mist separator filter element integrated inside the oil tank to ensure clean, odor-free, and oil-mist-free exhaust air.
Absolutely. The V063 features a forced internal oil recirculation lubrication system and air-cooling structure, designed specifically for non-stop continuous 24/7 duty cycles in industrial production.
