V-160 Rotary Vane Vacuum Pump
For vacuum packaging, CNC hold-down, thermoforming or degassing, send the process volume, starting and target pressures, gas composition and operating schedule. Confirm gas compatibility, oil and seal requirements, inlet protection, exhaust treatment, cooling and maintenance for the selected configuration. Review connection dimensions and electrical requirements before integration.
Browse all rotary vane vacuum pumps to compare other models.

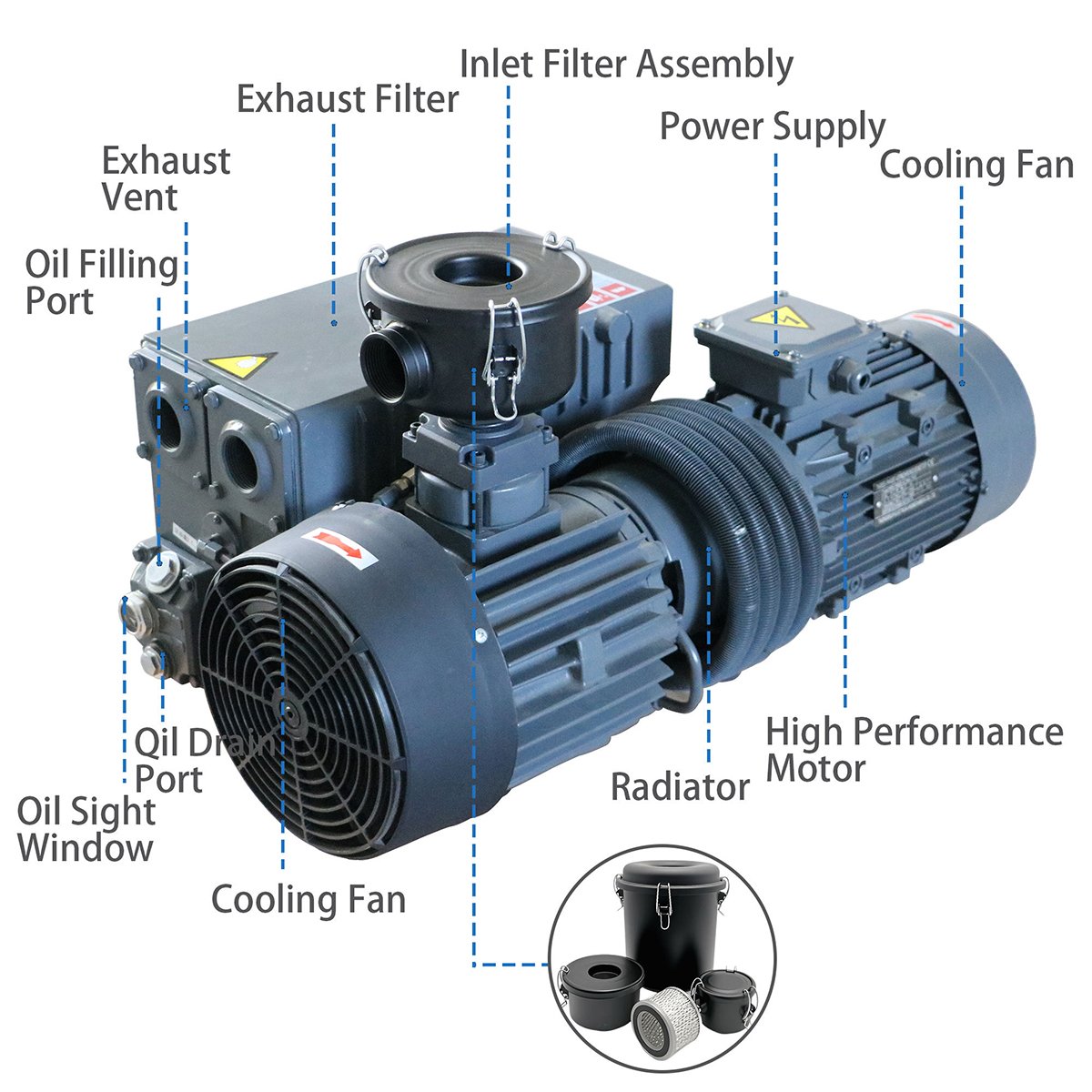

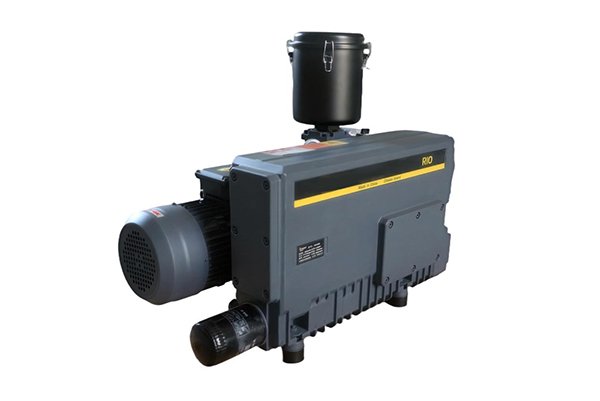

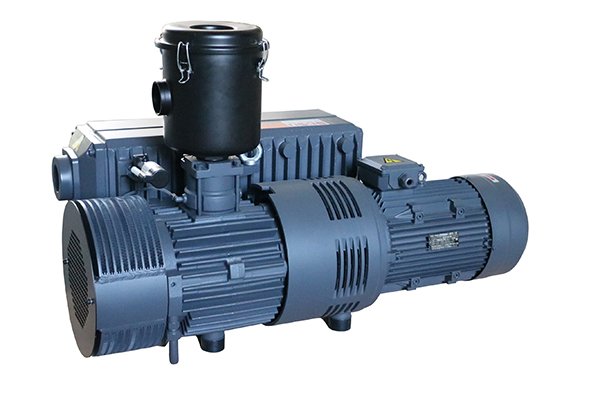

Image Gallery
Technical Specifications
| Technical Parameter | V-160 Specification Details |
|---|---|
| Model Number | V-160 (V160) |
| Pumping Speed (Displacement) | 160 m³/h @ 50Hz / 190 m³/h @ 60Hz |
| Ultimate Vacuum Pressure | 0.1 – 0.5 mbar |
| Motor Power Rating | 4 kW (5.5 HP) |
| Rated Voltage (Dual-Frequency) | Δ200-230V / Y380-415V (50Hz) | 440-460V (60Hz) |
| Motor Speed | 1440 rpm @ 50Hz / 1700 rpm @ 60Hz |
| Inlet / Outlet Connection | G 2" Threaded (2 Inch) |
| Sealing Material | KSK oil seal; confirm supplied brand, material and operating limits. |
| Operating Temperature Limit | ≤ 85 °C |
| Noise Level | ≤ 72 dB(A) |
| Oil Fill Capacity | 5.0 Liters |
| Pump Net Weight | 150 kg |
| Pump Dimensions (L × W × H) | 850 × 490 × 430 mm |
| Single Package Gross Weight | 185.0 kg (115 × 60 × 60 cm) |
Features & Key Advantages
Frequency & Motor Selection
Confirm the selected motor nameplate, voltage, phase and frequency before connection. Use the matching V-160 performance curve to assess pumping speed at the required operating pressure.
Housing & Seal Specification
Confirm housing material and seal specification for the supplied configuration. Leakage control and service life depend on gas compatibility, temperature, installation and maintenance.
Lubrication, Cooling & Noise
Oil circulation supports lubrication and heat management. Check oil condition, ambient temperature, cooling clearance and gas load for the intended duty cycle; assess noise under the specified test and installation conditions.
OEM / ODM Configuration Review
Discuss motor, finish and intake connection options for the project. Confirm availability, dimensions, electrical requirements and performance in an agreed specification before ordering.
Target Applications & Industry Uses
Primary Industrial Applications
- Vacuum packaging and tray sealing: compare chamber volume, target pressure and cycle time with the selected V-160 performance curve.
- CNC suction tables and lifters: calculate leakage, holding force and peak demand, and review controls for loss of vacuum.
- Sheet thermoforming: assess forming volume, tooling leakage and cycle requirements at the selected motor frequency.
- Resin and silicone degassing: confirm gas compatibility and provide inlet protection against liquid or resin carryover.
- Drying and concentration: define vapor load and process temperature, and assess condensation control and oil maintenance needs.
- Printing and paper handling: confirm required vacuum level, flow demand, dust filtration and exhaust routing.
Target Industry Sectors
- Food packaging plants: assess vapor and product carryover, cleaning provisions and exhaust management against equipment hygiene requirements.
- Woodworking, glass and stone equipment: review dust load, leakage, fixture design and holding-force requirements.
- Plastics and automotive trim equipment: assess cycle demand, fumes and process temperature before pump selection.
- Electrical impregnation facilities: confirm resin and gas compatibility, pressure requirements and inlet separation provisions.
- Printing and converting lines: assess simultaneous demand, paper dust, noise and service access for the installation.
- Laboratory, pilot and OEM machinery: define the process gases, target pressure and duty cycle, then confirm the configuration and installation requirements.
Advanced Technical FAQ
What are the dual-frequency performance metrics for the V-160 vacuum pump?
The published nominal pumping speeds are 160 m³/h at 50 Hz and 190 m³/h at 60 Hz. Confirm these ratings, motor speed, voltage and winding connection for the supplied configuration. Use the corresponding pumping-speed curve at the required inlet pressure to assess actual system performance.
How does the heavy-duty cast iron body and KSK oil seal enhance V-160 reliability?
Confirm the housing material and seal brand and specification for the supplied pump. Seal performance depends on gas and oil compatibility, temperature, installation and maintenance. Obtain the applicable operating limits before selection; material or brand names alone do not establish leak-free service or a temperature rating.
Is the V-160 suitable for OEM and ODM custom machinery integration?
OEM/ODM requirements can be reviewed for the project. Confirm available motor and electrical options, labeling, finish, intake accessories, dimensions and performance in an agreed specification before ordering. Compatibility with the machinery requires an installation review.
What routine maintenance is required to keep the V-160 operating at peak performance?
Follow the maintenance instructions for the supplied configuration. Check oil level and condition, cooling passages and exhaust separator condition regularly. Confirm the approved oil grade and inspection or replacement intervals for the process temperature, gas load, contamination and duty cycle.
Ready to Upgrade Your Industrial Vacuum System?
Send the model, target pressure, gas load, electrical supply and operating schedule for a configuration and quotation review. Request drawings and confirm availability and lead time for the proposed configuration.
