V-250 Rotary Vane Vacuum Pump
For packaging lines, CNC hold-down, thermoforming or resin degassing, provide process volume, starting and target pressures, evacuation time and gas composition. Include condensable vapours, particles and the operating schedule. Confirm oil and seal compatibility, gas-ballast configuration, inlet filtration, exhaust treatment, cooling and maintenance. Check connection dimensions and electrical requirements for integration into the existing equipment.
Browse all rotary vane vacuum pumps to compare other models.

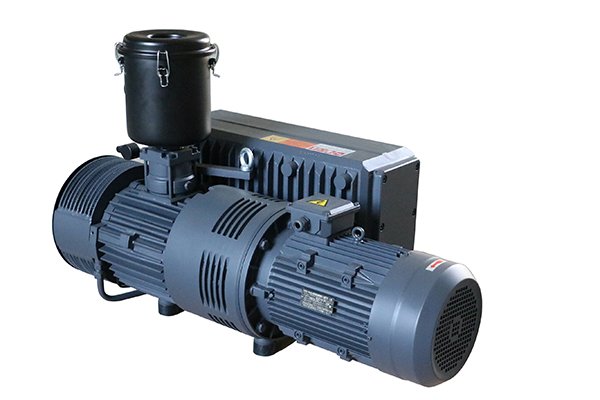

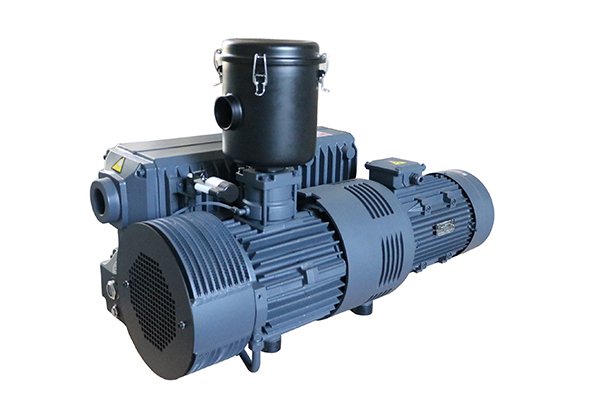

Image Gallery
Technical Specifications
| Technical Parameter | V-250 Specification Details |
|---|---|
| Model Number | V-250 (VR-250) |
| Pumping Speed (Displacement) | 250 m³/h @ 50Hz / 300 m³/h @ 60Hz |
| Ultimate Vacuum Pressure | 0.1 – 0.5 mbar |
| Motor Power Rating | 5.5 kW (7.5 HP) |
| Rated Voltage (Dual-Frequency) | Δ200-230V / Y380-415V (50Hz) | 440-460V (60Hz) |
| Motor Speed | 1440 rpm @ 50Hz / 1700 rpm @ 60Hz |
| Inlet / Outlet Connection | G 2" Threaded (2 Inch) |
| Sealing Material | KSK oil seal; confirm supplied brand, material and operating limits. |
| Operating Temperature Limit | ≤ 88 °C |
| Surface Finish | Industrial Spray Painting |
| Net Weight / Gross Weight | Approx. 195 kg / 230.0 kg (Packaged) |
| Package Dimensions (L × W × H) | 125 × 67 × 60 cm |
| Customized Support | OEM / ODM requirements for voltage, motor brand, finish and fittings: confirm available options and the agreed configuration before ordering. |
Features & Key Advantages
Pumping Performance Selection
Confirm motor rating, frequency and the pumping-speed curve for the selected V-250 configuration. Assess chamber volume, leakage, pipe conductance and target pressure when estimating evacuation time.
Housing & Seal Specification
Confirm housing material and seal brand and specification for the supplied pump. Review gas and oil compatibility, temperature limits and installation requirements for the process.
Oil Circulation & Cooling
Oil circulation supports lubrication and heat management. Provide cooling clearance, monitor oil condition and follow the maintenance schedule for the gas load, ambient temperature and intended duty cycle.
OEM / ODM Configuration Review
Discuss motor, branding, finish and intake connection requirements for the project. Confirm option availability, dimensions, electrical requirements and performance in an agreed specification before ordering.
Target Applications & Industry Uses
Primary Industrial Applications
- Vacuum packaging and thermoforming: compare chamber or forming volume, target pressure, leakage and cycle time with the selected V-250 performance curve.
- CNC tables and suction plates: calculate leakage, holding force and simultaneous demand, and review controls for loss of vacuum.
- Deep-draw forming and skin packaging: assess tooling leakage, evacuation time and process temperature for the machine cycle.
- Resin degassing and silicone casting: confirm material and gas compatibility and provide inlet protection against liquid or resin carryover.
- Drying, evaporation and concentration: assess pressure and vapor load; freeze-drying requires a separate review of the complete vacuum and condenser system.
- Printing and board handling: confirm required vacuum level, flow demand, dust filtration and exhaust routing.
Target Industry Sectors
- Food packaging plants: review vapor and product carryover, cleaning provisions and exhaust management against equipment hygiene requirements.
- Woodworking, glass and stone equipment: review dust load, fixture leakage and holding-force requirements before selection.
- Plastics and automotive molding: define cycle demand, process temperature and fumes, then assess configuration and inlet protection.
- Transformer and impregnation equipment: confirm gas and material compatibility, pressure requirements and liquid separation needs.
- Printing and converting lines: assess simultaneous demand, paper dust, noise and maintenance access for the installation.
- OEM vacuum systems: confirm motor supply, connections, dimensions, cooling clearance, controls and duty cycle in the machinery design.
Advanced Technical FAQ
What are the dual-frequency pumping speed ratings for the V-250 vacuum pump?
The published nominal pumping speeds are 250 m³/h at 50 Hz and 300 m³/h at 60 Hz. Confirm the ratings, motor speed, voltage and winding connection for the supplied configuration. Use the corresponding pumping-speed curve at the required inlet pressure to assess system performance.
What housing, seal and temperature limits should be confirmed for the V-250?
Confirm housing material, seal brand and specification, and the applicable temperature limits for the supplied pump. Performance depends on gas and oil compatibility, cooling conditions, installation and maintenance. Material or brand names alone do not establish leak-free service or a continuous temperature rating.
What OEM/ODM customization options are available for the GOFLEX V-250?
Motor, finish, filtration and branding requirements can be reviewed for the project. Confirm available options, dimensions, electrical requirements, gas compatibility and performance in an agreed specification before ordering.
What routine maintenance is necessary for optimal V-250 operation?
Follow the maintenance instructions for the supplied configuration. Check oil level and condition, cooling passages and exhaust separator condition regularly. Confirm the approved oil grade and inspection or replacement intervals for the process temperature, contamination, gas load and duty cycle.
Ready to Upgrade Your Industrial Vacuum System?
Send the model, target pressure, gas load, electrical supply and operating schedule for a configuration and quotation review. Request drawings and confirm availability and lead time for the proposed configuration.
