The V020 is designed primarily for dry atmospheric air and small amounts of condensable gas. If your process handles high humidity or condensable vapor, we recommend adding a gas ballast valve or a pre-condenser to prevent oil emulsification.
| Parameter / Specification | Value / Detail | Key Benefit / Description |
|---|---|---|

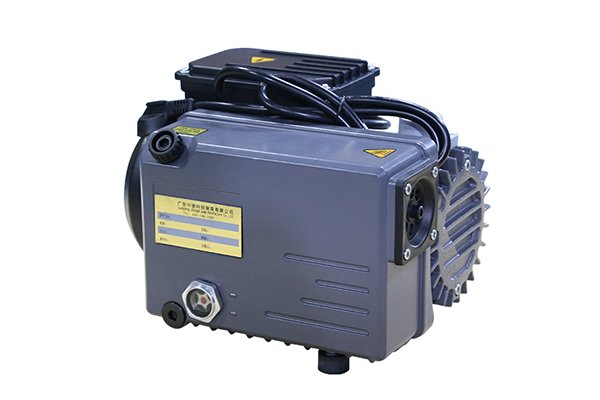

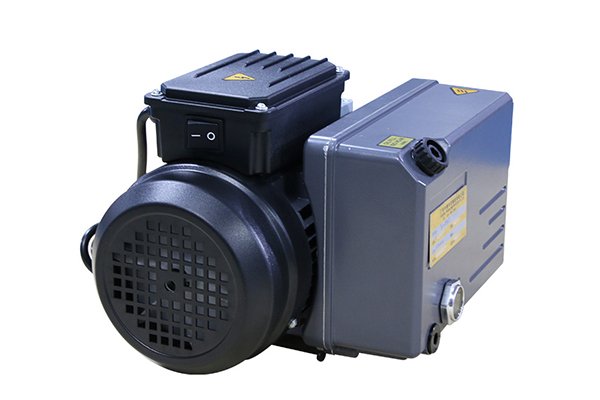

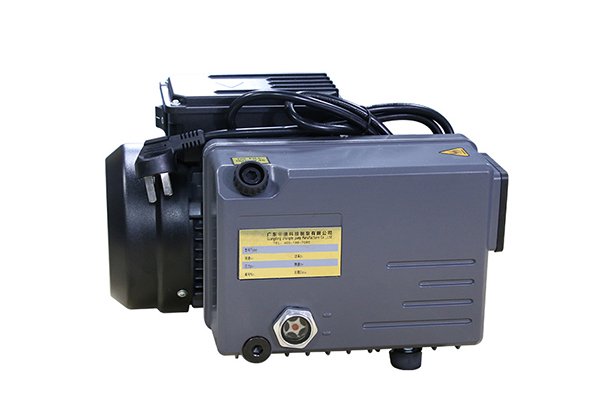

| Model | V020 | V-Series Single-Stage Rotary Vane |
| Pumping Speed | 20 m³/h | Rapid evacuation for small-to-medium chambers |
| Ultimate Vacuum | ≤ 0.5 mbar | High reliability in rough-to-low vacuum range |
| Motor Power | 0.75 kW | Direct-driven standard motor, energy-saving |
| Nominal Speed | 2880 rpm | High-efficiency stable operation |
| Rated Voltage | 220 V | Compatible with single-phase standard power |
| Inlet Port Size | G 3/4" Thread | Standard BSP thread for easy piping connection |
| Oil Capacity | 0.5 L | Internal forced oil recirculation system |
| Noise Level | ≤ 62 dB(A) | Ultra-quiet performance; no extra acoustic housing required |
| Net Weight | 18 kg | Lightweight and portable |
| Dimensions (L × W × H) | 320 × 230 × 215 mm | Space-saving compact footprint for OEM integration |
Compact & OEM Friendly: Standard motor direct-drive design with lightweight construction (18 kg) makes it easy to integrate into machinery enclosures.
Clean & Smoke-Free Exhaust: Equipped with an efficient exhaust oil mist filter, ensuring clean discharge air and a healthy working environment.
Low Noise & Low Vibration: Precision dynamic balancing ensures smooth running (≤ 62 dB), requiring no extra vibration dampeners or special foundation bolts.
Continuous Heavy-Duty Operation: Reliable internal oil circulation system guarantees continuous 24/7 industrial performance.
Easy & Low-Cost Maintenance: Accessible oil fill and drain ports reduce maintenance downtime and operational expenses.
The V020 is designed primarily for dry atmospheric air and small amounts of condensable gas. If your process handles high humidity or condensable vapor, we recommend adding a gas ballast valve or a pre-condenser to prevent oil emulsification.
No. Due to its balanced engineering and low vibration levels, the V020 can be operated directly on any flat, level floor or securely mounted inside an automated machine frame without special dampers.
