VB-900 Series Oil-Free Piston Vacuum Pumps
Provide the application, gas composition, duty cycle, ambient conditions and installation space. Confirm motor protection, cooling, port dimensions, inlet filtration, exhaust arrangements and service requirements for the proposed configuration. For medical suction, laboratory or cleanroom equipment, review air-quality and validation requirements with the equipment integrator. Confirm noise measurement conditions and supplied accessories before ordering.

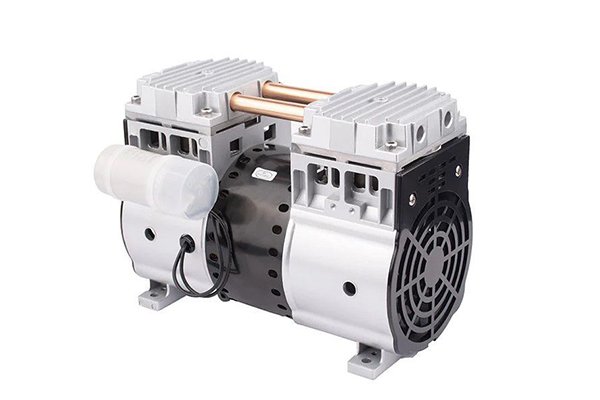

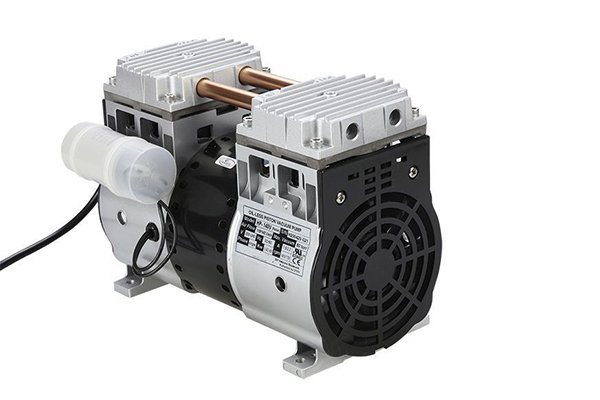

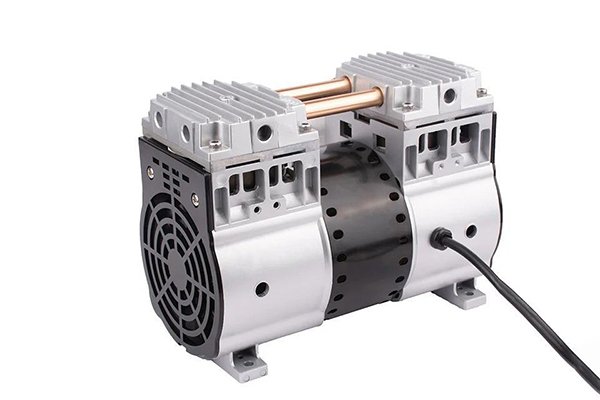

Image Gallery
VB Series Technical Specifications (Featuring VB-900 Specifications)
| Model | Voltage | Freq. | Power | Current | Max Vacuum | Max Flow | Port Size | Noise | Weight |
|---|---|---|---|---|---|---|---|---|---|
| VB-900V High Airflow | 110V | 50 Hz | 0.18 kW | 2.2 A | -685 mmHg (-91.3 kPa) | 85 L/min | 1/4" NPT/G | 56 dB(A) | 7.85 kg |
| 110V | 60 Hz | 0.19 kW | 1.8 A | 95 L/min | |||||
| 220V | 50 Hz | 0.17 kW | 0.8 A | 85 L/min | |||||
| 220V | 60 Hz | 0.17 kW | 0.9 A | 95 L/min | |||||
| VB-900H High Vacuum | 110V | 50 Hz | 0.21 kW | 2.3 A | -740 mmHg (-98.6 kPa) | 60 L/min | |||
| 110V | 60 Hz | 0.23 kW | 2.3 A | 68 L/min | |||||
| 220V | 50 Hz | 0.16 kW | 0.7 A | 60 L/min | |||||
| 220V | 60 Hz | 0.16 kW | 0.9 A | 68 L/min | |||||
| VB-400V | 110V | 50 Hz | 0.24 kW | 2.7 A | -680 mmHg | 50 L/min | 1/4" NPT/G | 56 dB(A) | 6.5 kg |
| 110V | 60 Hz | 0.25 kW | 2.3 A | 60 L/min | |||||
| 220V | 50 Hz | 0.22 kW | 1.1 A | 50 L/min | 7.8 kg | ||||
| 220V | 60 Hz | 0.21 kW | 1.0 A | 60 L/min | |||||
| VB-1200V | 110V | 50 Hz | 0.37 kW | 3.6 A | -700 mmHg | 105 L/min | 7.85 kg | ||
| 110V | 60 Hz | 0.45 kW | 4.1 A | 125 L/min | |||||
| 220V | 50 Hz | 0.24 kW | 1.5 A | 105 L/min | |||||
| 220V | 60 Hz | 0.38 kW | 1.7 A | 125 L/min | |||||
| VB-1200H | 110V | 50 Hz | 0.27 kW | 2.8 A | -740 mmHg | 85 L/min | |||
| 110V | 60 Hz | 0.30 kW | 2.9 A | 95 L/min | |||||
| 220V | 50 Hz | 0.35 kW | 1.5 A | 85 L/min | |||||
| 220V | 60 Hz | 0.35 kW | 1.7 A | 95 L/min | |||||
| VB-1400V | 110V | 50 Hz | 0.51 kW | 4.6 A | -700 mmHg | 120 L/min | |||
| 110V | 60 Hz | 0.67 kW | 5.9 A | 145 L/min | |||||
| 220V | 50 Hz | 0.45 kW | 1.7 A | 120 L/min | |||||
| 220V | 60 Hz | 0.55 kW | 2.3 A | 145 L/min | |||||
| VB-1400H | 110V | 50 Hz | 0.36 kW | 3.4 A | -740 mmHg | 92 L/min | 1/4" NPT/G | 56 dB(A) | 7.85 kg |
| 110V | 60 Hz | 0.44 kW | 3.9 A | 105 L/min | |||||
| 220V | 50 Hz | 0.40 kW | 1.6 A | 95 L/min | |||||
| 220V | 60 Hz | 0.50 kW | 2.1 A | 110 L/min | |||||
| VB-1800V / H | 110V | 60 Hz (V) | 0.59 kW | 5.1 A | -700 mmHg | 185 L/min | 3/8" NPT/G | 60 dB(A) | 11.0 kg |
| 220V | 50 Hz (V) | 0.55 kW | 2.5 A | -700 mmHg | 155 L/min | ||||
| 110V | 60 Hz (H) | 0.58 kW | 5.2 A | -740 mmHg | 135 L/min | ||||
| 220V | 50 Hz (H) | 0.55 kW | 2.5 A | -740 mmHg | 110 L/min | ||||
| VB-2000V / H | 110V | 60 Hz (V) | 0.60 kW | 5.3 A | -700 mmHg | 208 L/min | |||
| 220V | 50 Hz (V) | 0.55 kW | 2.5 A | -700 mmHg | 170 L/min | ||||
| 110V | 60 Hz (H) | 0.60 kW | 5.2 A | -740 mmHg | 155 L/min | ||||
| 220V | 50 Hz (H) | 0.55 kW | 5.3 A | -740 mmHg | 128 L/min |
Why Choose the VB-900 Oil-Free Vacuum Pump?
V and H Configuration Selection
Compare VB-900V and VB-900H using model-specific data at the required voltage and frequency. Confirm the flow available at your working vacuum; maximum airflow and limiting vacuum should not be assumed to occur together. Request the performance curve and pressure measurement conditions.
Oil-Free Operation & Service Requirements
Oil-free piston operation does not remove inspection or service requirements. Confirm filter care, piston seal inspection and replacement intervals for the selected configuration. Review inlet filtration and exhaust arrangements against the process air-quality requirements.
Noise Data & Vibration Mounting
Confirm the noise rating, measurement distance, operating load and installation conditions for the quoted configuration. Review vibration mounting and inlet silencer requirements, and verify which accessories are included.
Motor Protection & Operating Limits
Confirm the thermal protector, trip and reset behaviour, electrical protection and cooling requirements for the selected motor. Review duty cycle and ambient limits for the installation; verify any voltage-surge protection separately.
Target Applications & Operating Environments
🏥 Medical & Hospital Systems
For medical or dental suction and pharmaceutical cleanroom equipment, define the required pressure, flow, air-quality criteria and equipment validation with the integrator. Confirm filtration, gas compatibility and protective measures for the complete system.
🔬 Laboratory Devices & Filtration
For filtration, desiccation or laboratory drying, confirm flow at the working vacuum and the required pressure control. For evaporation or vapour loads, review gas compatibility, condensation protection and exhaust treatment before selecting a configuration.
⚡ Semiconductor & Automation
For handling and automation, provide the workpiece, leakage rate, required holding force and cycle time. Review vacuum controls, filtration and flow at the operating pressure; assess positioning and release behaviour in the complete machine.
📦 Food Packaging & Plastics Molding
For thermoforming, blister packaging or food sealing, define the process pressure, evacuation time and duty cycle. Review materials, filtration, exhaust arrangements and applicable process requirements with the equipment integrator.
Frequently Asked Questions (FAQ)
What is the key difference between VB-900V and VB-900H models?
Compare VB-900V and VB-900H using the model-specific performance curve at the required voltage and frequency. Confirm flow at your working vacuum; maximum airflow and limiting vacuum should not be assumed to occur together. Evacuation time depends on vessel volume, gas load and the complete installation.
What are the power consumption and electrical options for the VB-900 pump?
Review the voltage, frequency, motor rating and current for the exact VB-900 configuration in the specification table and quotation. Confirm the electrical supply and protective controls before ordering. Motor ratings alone do not establish energy consumption under your operating load.
Is the VB-900 suitable for quiet laboratory and medical environments?
Assess the complete installation against laboratory or medical equipment requirements. Confirm pressure, flow, filtration, exhaust arrangements, noise measurement conditions and equipment validation with the integrator. Oil-free operation alone does not establish suitability for medical or cleanroom use.
What accessories come standard with the VB-900 vacuum pump?
Confirm the accessory list in the quotation, including any inlet filter, exhaust silencer, vibration mounts and hose fittings. Verify connection dimensions and whether each item is included or optional for the selected configuration.
Ready to Upgrade Your Industrial Vacuum System?
Send the model, target pressure, gas load, electrical supply and operating schedule for a configuration and quotation review. Request drawings and confirm availability and lead time for the proposed configuration.
