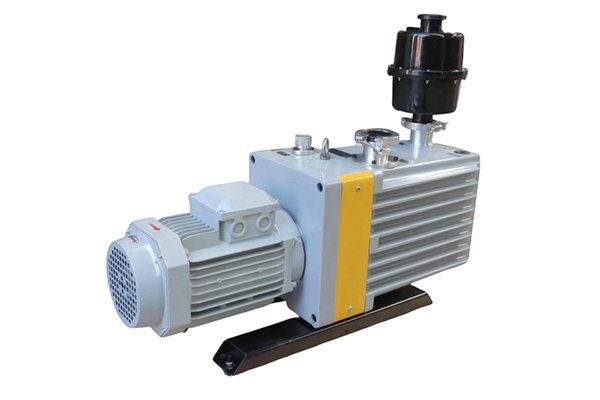

ZDR-80 Two-Stage Rotary Vane Vacuum Pump

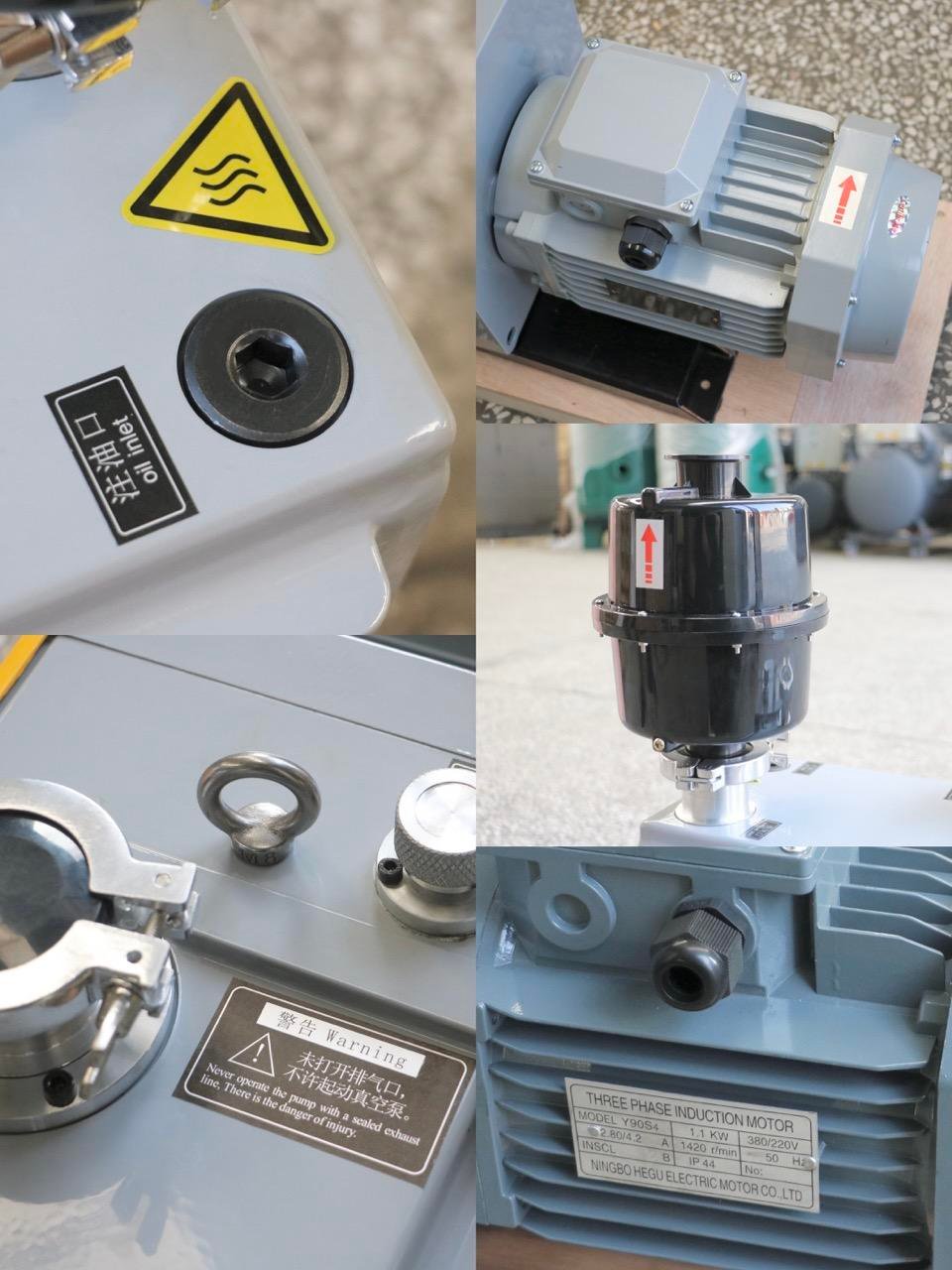

Image Gallery
Technical Specifications
| Technical Parameter | ZDR-80 Specification Details |
|---|---|
| Model Number | ZDR-80 (ZDR80) |
| Pump Structure | Two-Stage Direct Drive Rotary Vane |
| Pumping Speed (Displacement) | 80 m³/h (50Hz) |
| Ultimate Vacuum Pressure | 0.05 Pa / 5 × 10⁻² Pa |
| Motor Power Rating | 2.2 kW (380V / 50Hz; confirm the supplied motor configuration) |
| Motor Rotational Speed | 1450 rpm |
| Inlet Flange Connection | KF40 ISO Quick Release Flange |
| Oil Injection Volume | 6.5 Liters |
| Noise Level | ≤ 65 dB(A) |
| Machine Dimensions (L × W × H) | 830 × 280 × 440 mm |
| Net Weight / Gross Weight | 90.0 kg (Net) / 100.0 kg (Gross) |
| Packaging Dimensions | 900 × 350 × 500 mm |
| Warranty & Customization | Confirm warranty duration, coverage, exclusions and service terms in the written quotation. OEM / ODM options require confirmation in the agreed configuration. |
Features & Key Advantages
Pumping Speed & Ultimate Pressure
Confirm the pumping-speed curve and ultimate-pressure test conditions for the selected ZDR-80 configuration. Frequency, oil condition, gas-ballast setting, system leakage and pipe conductance affect the achievable process performance.
Motor & Duty-Cycle Selection
Confirm the motor nameplate, rated speed, electrical supply and permitted operating range for the supplied version. Review gas load, inlet pressure, cooling conditions and duty cycle before selection.
Oil Capacity & Maintenance
Confirm oil capacity and the approved oil grade for the supplied configuration. Inspect oil level and condition, and set maintenance intervals according to process contamination, temperature, gas load and the operating instructions.
Noise & Connection Planning
Confirm flange dimensions and connection details before integration. Assess noise and vibration under the specified test and installation conditions, with suitable cooling clearance and maintenance access.
Target Applications & Industry Sectors
Primary Process Applications
- Semiconductor and electronic encapsulation: define process pressure, gas composition and cleanliness before reviewing the complete vacuum system.
- Vacuum packaging and dehydration: compare chamber demand, leakage, target pressure and vapor load with the selected ZDR-80 performance curve.
- Epoxy, resin and silicone degassing: confirm material compatibility and provide inlet protection against liquid or resin carryover.
- Drying and heat-treatment systems: assess pressure, vapor load and temperature; freeze-drying requires review of the complete vacuum and condenser arrangement.
- Coating and sputtering backing: confirm backing pressure, flow demand, process-gas compatibility and contamination-control requirements.
- Leak detection and calibration: define required pressure, test background, instrument compatibility and connection requirements.
Target Industry Sectors
- Electronics manufacturing: assess gas load, contamination limits and duty cycle for the selected pump configuration.
- Food processing and packaging: review cleaning provisions, vapor and product carryover, and exhaust management against equipment hygiene requirements.
- Pharmaceutical and chemical equipment: confirm process-gas compatibility, containment and contamination requirements before assessing suitability.
- Automotive and machining equipment: assess the vacuum function, operating pressure and protection from entrained particles or fluids.
- Resin and composite processes: review gas and material compatibility, leakage and inlet separation requirements.
- Research and QA facilities: confirm pressure range, gas load, ventilation, noise and service access for the installation.
Advanced Technical FAQ
What are the primary performance parameters of the ZDR-80 vacuum pump?
The page lists a nominal pumping speed of 80 m³/h and an ultimate pressure of 0.05 Pa. Confirm the test conditions, motor configuration, flange specification, oil capacity and noise measurement conditions for the supplied version. Actual system pressure also depends on leakage, outgassing and pipe conductance.
How does the ZDR-80 perform in demanding industrial applications?
Assess inlet pressure, gas and vapor load, ambient temperature, cooling clearance and the permitted operating range for the supplied configuration. Confirm the maintenance schedule and oil condition for continuous duty. Drying and freeze-drying require review of the complete vacuum and condensation-control system.
What should be reviewed before selecting the ZDR-80 for a process?
Assess process pressure, gas compatibility, contamination limits and duty cycle before selecting a configuration. Semiconductor, chemical, pharmaceutical, coating and leak-detection systems require separate review of process requirements and the complete vacuum arrangement.
Can GOFLEX customize voltage and OEM specifications for the ZDR-80?
Motor supply, finish, fittings and labeling requirements can be reviewed for the project. Confirm available options, dimensions, electrical requirements and performance in an agreed specification before ordering.
